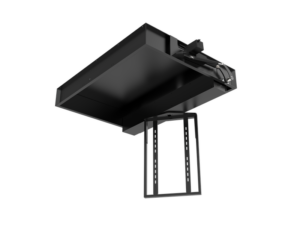

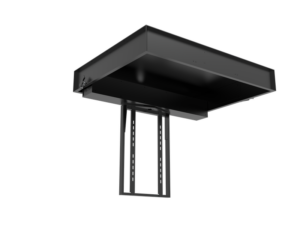

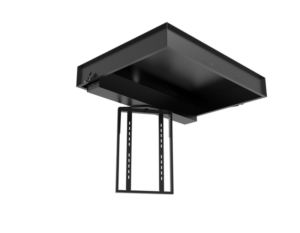

Swivel TV Mount Ulisse Rotor
Thanks to its reduced depth (only 18 centimeters) and the frame suitable for attachment to the drop ceiling, it will be easy to install the mechanism almost anywhere. The Ulisse Rotor swivel TV brackets are available in different sizes to accommodate TVs from 32” to 65”. The Rotor version allows the TV to rotate over 350 degrees, ensuring viewing from multiple points in the room. Two powerful electric pistons, each with 4500/6000 Nm, open the door supporting the swivel TV bracket downwards, ensuring a flush-to-wall effect when closing.
Model and dimensions available
| Model | Width (mm) | Height (mm) | Depth (mm) | Vesa | Available space | TV |
|---|---|---|---|---|---|---|
| ULISSE R. 42 | 1053 | 855 | 190 | 100-200-300 | 1000X595 | 42" |
| ULISSE R. 55 | 1303 | 958 | 190 | 200-300-400 | 1250X730 | 55” |
| ULISSE R. 60 | 1453 | 1052 | 190 | 200-300-400 | 1400X840 | 60” |
| ULISSE R. 65 | 1553 | 1061 | 190 | 200-300-400 | 1500X900 | 65" |
Accessories
- Stabilized power supply 110/240V – 50/60 Hz
- 2-channel remote control
Optional accessories
- Anti-collision and anti-cutting sensitive edge
Documentation
Disegni in DXF
Safe and reliable control of the retractable TV system
The rotation assembly has been specially designed for the Ulisse Rotor swivel TV brackets, with a wide central passage for TV cables, reducing the risk of damage. Two thrust elements make the assembly capable of supporting very high axial and longitudinal loads, ensuring smooth movement and imperceptible noise (<40 db).
Ulisse Rotor is operated via the provided four-channel remote control, or it can be connected to home automation through clean contacts prepared inside the control unit. Alignment and right/left rotation are adjusted by two mechanical limit switches and a positioning photocell.
The electronic control unit, the heart of the entire system, monitors and manages all functions of the Ulisse Rotor swivel TV bracket, including all safety devices and automatic realignment before closing. The optional provided sensitive edges can be mounted directly into the mechanism frame, and in case of impact or crushing, they will immediately stop and reverse the movement, allowing the obstacle to be removed.
Ulisse Rotor operates at very low voltage (24Vdc) and is CE certified at the GSD laboratory in Pisa.
