Ulisse Extender

Line of recessed motorized TV brackets with downward extension.

Unlike the Ulisse and Ulisse Rotor ceiling TV brackets, Ulisse Extender ensures perfect visibility of the TV in environments where it is necessary to adjust the height downwards.

❤️ We are here to help you create a custom solution for your needs. Does your product doesn't fir in our current standard dimensions? Ask us for a quote and you'll see the difference it makes to work with professionals. We guarantee the safety of measurements and products compliant with legal regulations.

Request a Quote
Category: Product ID: 22197

Description

Hanging a TV from the ceiling is easy with Ulisse.

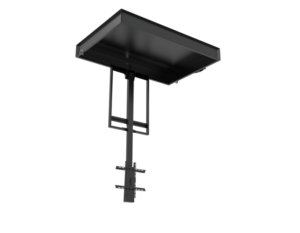

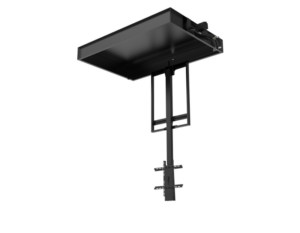

Whether it’s high ceilings, drop ceilings, or if you want a comfortable view even when lying down, Ulisse Extender is the right solution for you. Once opened, it descends downwards up to 2 meters via a telescopic column. Installing a ceiling TV offers huge benefits in terms of space and visibility.

With its shallow depth (only 15 centimeters) and a frame suitable for attachment to the drop ceiling, it allows installation of the mechanism almost anywhere. It is available in various sizes for TVs ranging from 32” to 65”.

The downward opening of 110° degrees and the downward extension can be operated via remote control or through home automation. Two powerful electric pistons, each with 4500Nm,
ensure the flush-to-wall closure of the Ulisse ceiling TV brackets.



Model and dimensions available

Model Width (mm) Height (mm) Depth (mm) VESA Available space TV
ULISSE EXT. 50 1203 783 190 200-300-400 1150X660 50"
ULISSE EXT. 55 1303 853 190 200-300-400 1250X730 55”
ULISSE EXT. 60 1453 963 190 200-300-400 1400X840 60”
ULISSE EXT. 65 1553 1023 190 200-300-400 1500X900 65"

Accessories

  • Stabilized power supply 110/240V – 50/60 Hz
  • 2-channel remote control

Optional accessories

  • Anti-collision and anti-cutting sensitive edge
  • Electronic device that activates the mechanism when the TV is turned on and lowers it when it is turned off.
  • Communication interface with home automation systems.

Documentation

Download PDF

Drawings in DXF

Download DXF

FAQ

The Ulisse Extender ceiling TV mount is the ideal solution for hanging your TV from the ceiling without the need to drill holes in the walls. Thanks to its telescopic column, you can adjust the height down to 2 meters for comfortable viewing even when lying down.

The ideal height to hang your TV depends on the size of the screen and the distance of the user from the TV. With the Ulisse Extender ceiling TV mount, you can adjust the height down to 2 meters to get a comfortable view even when lying down.

Ulisse Extender is the ideal ceiling TV mount for large screens like 55 inches. Thanks to its telescopic column, you can adjust the height down to 2 meters for perfect visibility.

To attach your TV to the wall, you will need a TV mount like Ulisse Extender, which is specially designed for this purpose. Thanks to its telescopic column, you can adjust the height down to 2 meters to get a comfortable view even when lying down.

Safe and reliable control of the retractable TV system.

The electronic control unit, the heart of the entire system, monitors and manages all functions of the ceiling TV bracket, all safety devices, and sensitive edges that can be mounted directly into the frame. In case of impact or crushing of the sensitive edge, the Ulisse Extender ceiling bracket will immediately stop the movement and reverse it for a few centimeters, allowing the obstacle to be removed.

All versions of the Ulisse ceiling TV bracket are handcrafted with care in our company.

Hanging a TV from the ceiling has never been easier!

Ulisse Extender operates at very low voltage (24Vdc) and is CE certified at the GSD laboratory in Pisa.
