Description

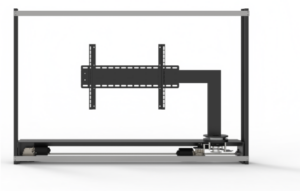

Motorized swivel flag TV bracket
This solution is suitable for those who cannot provide a piece of furniture, cabinet, or shelf positioned directly in front of the viewing point due to space constraints, without sacrificing optimal TV viewing.
The right/left rotation is controlled by two limit switches and a position sensor. The corner TV brackets of the Archimede Flag series are designed to save space in a room, thus maintaining ample passageways.

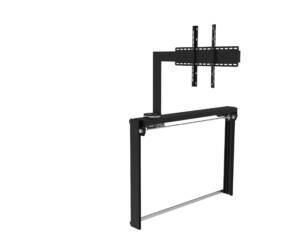

During startup, the Archimede Flag swivel TV mounts will lift your TV, rotating up to 90°, and through a small remote control, you can manage the rotation until the desired point.
Model and dimensions available
| Model | Width (mm) | Height (mm) | Depth (mm) | VESA | Available space | TV |
|---|---|---|---|---|---|---|
| ARC 120 B | 1200 | 860 | 165 | 200-300-400 | 1105X645 | 48-49" |
| ARC 130 B | 1300 | 880 | 165 | 200-300-400 | 1200X650 | 50" |
| ARC 140 B | 1400 | 930 | 165 | 200-300-400 | 1250X720 | 55" |
| ARC 150 B | 1500 | 1020 | 165 | 200-300-400 | 1365X790 | 60" |
| ARC 160 B | 1600 | 1080 | 165 | 100-300-400 | 1455X840 | 65" |
Accessories
- Stabilized power supply 110/240V – 50/60 Hz
- 2-channel remote control
Optional accessories:
- Motorized door opening/closing device capable of retracting inside the furniture before the TV starts to ascend.
- Anti-collision and anti-cutting sensitive edge
Documentation
Drawings in DXF
Swivel TV Bracket Archimede Flag: robustness and silence for an optimal viewing experience
The TV brackets and mounts of the Archimede Flag series are made with stainless steel parts and anticorodal linear guides with a special hard oxidation treatment, on which sliding shoes run, making it particularly silent. The movement on rack and ball bearings ensures robustness; in fact, it can carry a load of up to 100 kg.
The motorized rotation group has been specially designed for the motorized TV mounts Archimede Flag and utilizes a three-section bearing with two thrust elements and a series of gears. Each flag TV bracket is capable of bearing very high axial and longitudinal loads, ensuring smooth movement and imperceptible noise (<40 db).
The TV screen is fixed and positioned on a bracket with standard VESA 200 – 300 – 400 holes and attachments.
We produce customizable models based on the dimensions of the TV screen, ranging from 32” up to 60”.
With this motorized flag TV bracket, we recommend using the motorized door opening/closing device capable of retracting inside the furniture before the TV begins to ascend. Archimede Flag is operated via the provided four-channel remote control; alternatively, it can be connected to home automation through clean contacts present within the control unit. The alignment and right/left rotation of the bracket are regulated by two mechanical limit switches and a positioning photocell. The electronic control unit, the heart of the entire system, monitors and manages the TV automation and all functions of the mechanism, including all safety devices and automatic realignment before descent. Optional sensitive edges, which can be mounted directly in the furniture, will immediately stop and reverse the motion in case of impact or crushing, allowing the obstacle to be removed. All versions of the Archimede bracket are customizable and handcrafted with care in our company.
Archimede operates at very low voltage (24Vdc) and is CE certified at the GSD laboratory in Pisa.
